GO AFO

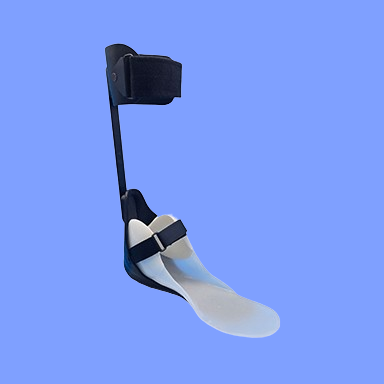

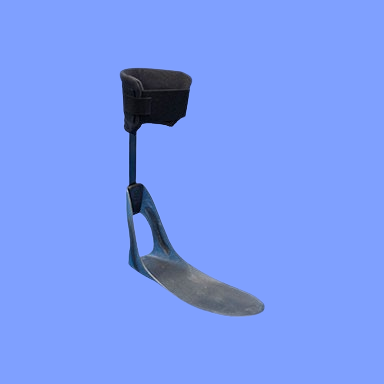

The GO AFO Design incorporates the GO AFO Carbon Strut with a carbon infused thermoplastic footplate. The GO AFO Carbon Strut allows for dynamic motion and energy return, which normalizes gait pattern while reducing energy expenditure. This design provides all of the dynamic function of a traditional carbon AFO while allowing for superior footplate fit, medial and lateral stability, heat adjustability, and patient comfort/compliance. The GO AFO also provides an extremely lightweight, strong, and low profile design.
GO-100 Tall
GO-200 Short
Features & Benefits:
• Carbon Composite Strut
• Carbon Infused Footplate Trimmable & Heat Adjustable
• Posterior Medial/Lateral Strut Design
• Open Heel Design for Easy Shoe Fit
• Flexible Calf Cuff for Easy Fit and Adjustment
• Padded Calf Band Cover with Velcro Closure Removable/Replaceable
• Six-Month Warranty
Product Options:
• Short & Tall
• Full Footplate or 3/4 Footplate
• Presized S, M, L or Custom
• Incorporate GO FO for Total Contact Support of Foot and Ankle Stability
• Heel Lift for Contra-Lateral Balancing
• GO AFO Strut Kit Available to incorporate
into your own custom AFO
Clinical Indications:
• Drop Foot
• Peroneal Nerve Palsy
• CVA
• Dorsiflexion Paresis/Paralysis
• Achilles Injuries/Rehab
• Plantar Fasciitis
• Soft Tissue Injuries of Foot & Ankle
GO AFO Product Options & Features:
Tall & Short
3/4 Footplate
Open Heel
Flexible Calf Cuff
Padded Calf Band Cover
GO AFO Product Accessories:
GO AFO Strut Kits
GO FO
Baseline Heel Lifts
GO AFO Ordering Information:
| Product# | Description | Size | Side | Footplate Length | Shoe Size | Height |
|---|---|---|---|---|---|---|
|
GO-100-SL
|
GO-AFO Tall-Full Foot
|
Small
|
Left
|
36-39 cm
|
M 5-6, W 6-8.5
|
35 cm
|
|
GO-100-SR
|
GO-AFO Tall-Full Foot
|
Small
|
Right
|
36-39 cm
|
M 5-6, W 6-8.5
|
35 cm
|
|
GO-100-ML
|
GO-AFO Tall-Full Foot
|
Medium
|
Left
|
39-42 cm
|
M 6-9, W 8.5-10
|
36.5 cm
|
|
GO-100-MR
|
GO-AFO Tall-Full Foot
|
Medium
|
Right
|
39-42 cm
|
M 6-9, W 8.5-10
|
36.5 cm
|
|
GO-100-LL
|
GO-AFO Tall-Full Foot
|
Large
|
Left
|
42-45 cm
|
M 9-12, W 10-13
|
38 cm
|
|
GO-100-LR
|
GO-AFO Tall-Full Foot
|
Large
|
Right
|
42-45 cm
|
M 9-12, W 10-13
|
38 cm
|
| Product# | Description | Size | Side | Footplate Length | Shoe Size | Height |
|---|---|---|---|---|---|---|
|
GO-110-SL
|
GO-AFO Tall-3/4 Foot
|
Small
|
Left
|
36-39 cm
|
M 5-6, W 6-8.5
|
35 cm
|
|
GO-110-SR
|
GO-AFO Tall-3/4 Foot
|
Small
|
Right
|
36-39 cm
|
M 5-6, W 6-8.5
|
35 cm
|
|
GO-110-ML
|
GO-AFO Tall-3/4 Foot
|
Medium
|
Left
|
39-42 cm
|
M 6-9, W 8.5-10
|
36.5 cm
|
|
GO-110-MR
|
GO-AFO Tall-3/4 Foot
|
Medium
|
Right
|
39-42 cm
|
M 6-9, W 8.5-10
|
36.5 cm
|
|
GO-110-LL
|
GO-AFO Tall-3/4 Foot
|
Large
|
Left
|
42-45 cm
|
M 9-12, W 10-13
|
38 cm
|
|
GO-110-LR
|
GO-AFO Tall-3/4 Foot
|
Large
|
Right
|
42-45 cm
|
M 9-12, W 10-13
|
38 cm
|
| Product# | Description | Size | Side | Footplate Length | Shoe Size | Height |
|---|---|---|---|---|---|---|
|
GO-200-SL
|
GO-AFO Short-Full Foot
|
Small
|
Left
|
36-39 cm
|
M 5-6, W 6-8.5
|
23 cm
|
|
GO-200-SR
|
GO-AFO Short-Full Foot
|
Small
|
Right
|
36-39 cm
|
M 5-6, W 6-8.5
|
23 cm
|
|
GO-200-ML
|
GO-AFO Short-Full Foot
|
Medium
|
Left
|
39-42 cm
|
M 6-9, W 8.5-10
|
24 cm
|
|
GO-200-MR
|
GO-AFO Short-Full Foot
|
Medium
|
Right
|
39-42 cm
|
M 6-9, W 8.5-10
|
24 cm
|
|
GO-200-LL
|
GO-AFO Short-Full Foot
|
Large
|
Left
|
42-45 cm
|
M 9-12, W 10-13
|
25.5 cm
|
|
GO-200-LR
|
GO-AFO Short-Full Foot
|
Large
|
Right
|
42-45 cm
|
M 9-12, W 10-13
|
25.5 cm
|
| Product# | Description | Size | Side | Footplate Length | Shoe Size | Height |
|---|---|---|---|---|---|---|
|
GO-210-SL
|
GO-AFO Short-3/4 Foot
|
Small
|
Left
|
36-39 cm
|
M 5-6, W 6-8.5
|
23 cm
|
|
GO-210-SR
|
GO-AFO Short-3/4 Foot
|
Small
|
Right
|
36-39 cm
|
M 5-6, W 6-8.5
|
23 cm
|
|
GO-210-ML
|
GO-AFO Short-3/4 Foot
|
Medium
|
Left
|
39-42 cm
|
M 6-9, W 8.5-10
|
24 cm
|
|
GO-210-MR
|
GO-AFO Short-3/4 Foot
|
Medium
|
Right
|
39-42 cm
|
M 6-9, W 8.5-10
|
24 cm
|
|
GO-210-LL
|
GO-AFO Short-3/4 Foot
|
Large
|
Left
|
42-45 cm
|
M 9-12, W 10-13
|
25.5 cm
|
|
GO-210-LR
|
GO-AFO Short-3/4 Foot
|
Large
|
Right
|
42-45 cm
|
M 9-12, W 10-13
|
25.5 cm
|
GO AFO Accessories Ordering Information:
GO Foot Orthotic
Product# |
Description |
Side |
Women's |
Men's |
|---|---|---|---|---|
|
GOFO-S |
GO Foot Orthotic |
Small |
5 - 7 |
4 - 6 |
|
GOFO-M |
GO Foot Orthotic |
Medium |
8 - 9.5 |
6 - 8 |
|
GOFO-L |
GO Foot Orthotic |
Large |
10 - 12+ |
9 - 11 |
|
GOFO-XL |
GO Foot Orthotic |
X-Large |
12.5 + |
12 -15 |
GO FO Heel Stabilizer
Product# |
Description |
Side |
Women's |
Men's |
|---|---|---|---|---|
|
GOHS-S |
GO Heel Stabilizer |
Small |
5 - 7 |
4 - 6 |
|
GOHS-M |
GO Heel Stabilizer |
Medium |
8 - 9.5 |
6 - 8 |
|
GOHS-L |
GO Heel Stabilizer |
Large |
10 - 12+ |
9 - 11 |
|
GOHS-XL |
GO Heel Stabilizer |
X-Large |
12.5 + |
12 -15 |
Baseline Heel Lifts - 60 Durometer
Product# |
Description |
Side |
Size |
Height |
|---|---|---|---|---|
|
BHL-3350-60S3 |
Heel Lift 60 Durometer |
Universal |
Small |
3mm |
|
BHL-3350-60S6 |
Heel Lift 60 Durometer |
Universal |
Small |
6mm |
|
BHL-3350-60S9 |
Heel Lift 60 Durometer |
Universal |
Small |
9mm |
|
BHL-3350-30M3 |
Heel Lift 60 Durometer |
Universal |
Medium |
3mm |
|
BHL-3350-60M6 |
Heel Lift 60 Durometer |
Universal |
Medium |
6mm |
|
BHL-3350-60M9 |
Heel Lift 60 Durometer |
Universal |
Medium |
9mm |
|
BHL-3350-60L3 |
Heel Lift 60 Durometer |
Universal |
Large |
3mm |
|
BHL-3350-60L6 |
Heel Lift 60 Durometer |
Universal |
Large |
6mm |
|
BHL-3350-60L6 |
Heel Lift 60 Durometer |
Universal |
Large |
9mm |
Baseline Heel Lifts - 30 Durometer
Product# |
Description |
Side |
Size |
Height |
|---|---|---|---|---|
|
BHL-3350-30S3 |
Heel Lift 30 Durometer |
Universal |
Small |
3mm |
|
BHL-3350-30S6 |
Heel Lift 30 Durometer |
Universal |
Small |
6mm |
|
BHL-3350-30S9 |
Heel Lift 30 Durometer |
Universal |
Small |
9mm |
|
BHL-3350-30M3 |
Heel Lift 30 Durometer |
Universal |
Medium |
3mm |
|
BHL-3350-30M6 |
Heel Lift 30 Durometer |
Universal |
Medium |
6mm |
|
BHL-3350-30M9 |
Heel Lift 30 Durometer |
Universal |
Medium |
9mm |
|
BHL-3350-30L3 |
Heel Lift 30 Durometer |
Universal |
Large |
3mm |
|
BHL-3350-30L6 |
Heel Lift 30 Durometer |
Universal |
Large |
6mm |
|
BHL-3350-30L9 |
Heel Lift 30 Durometer |
Universal |
Large |
9mm |
