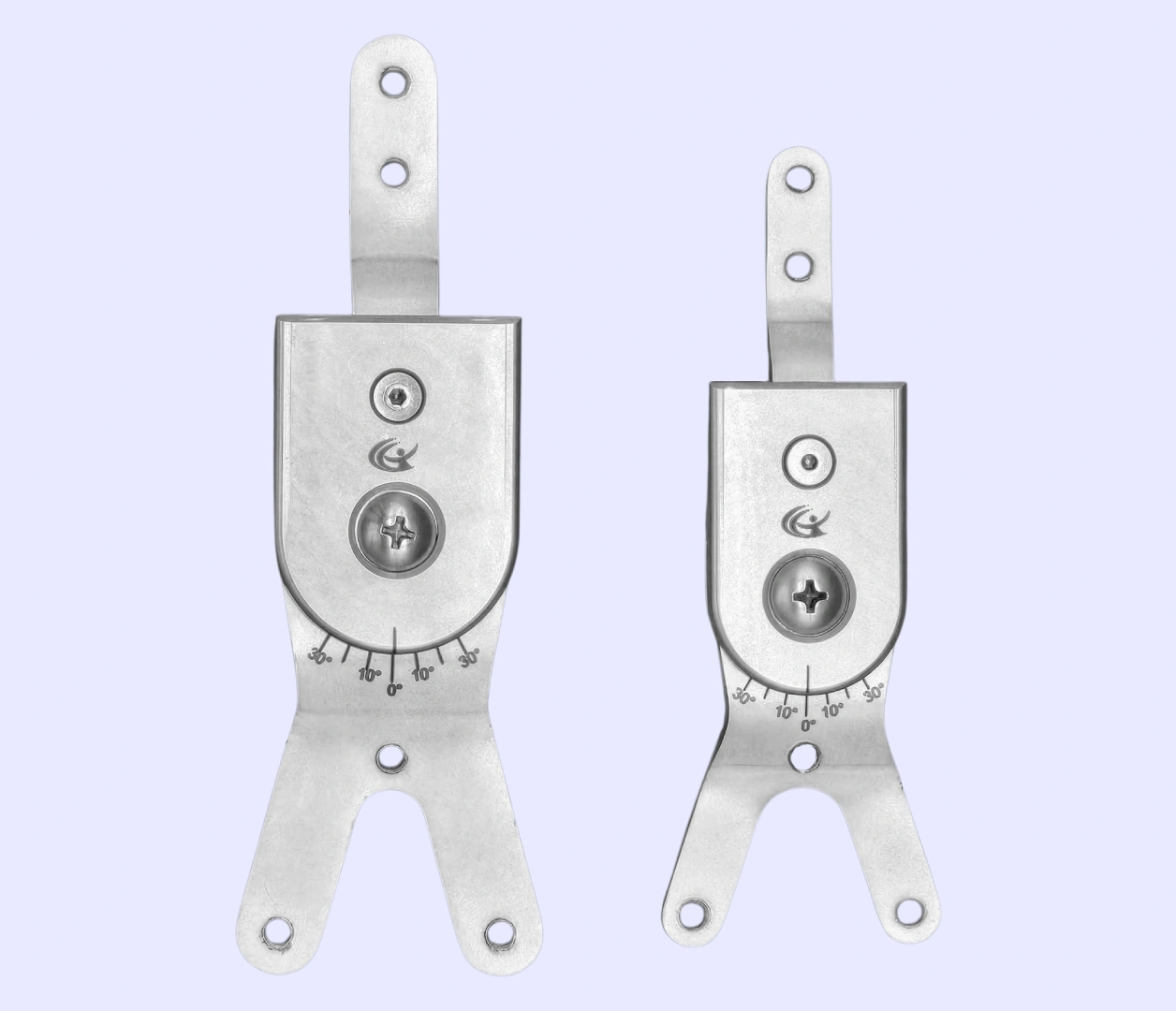

Vertex Double Action Ankle Joints
Adult Vertex Double Action

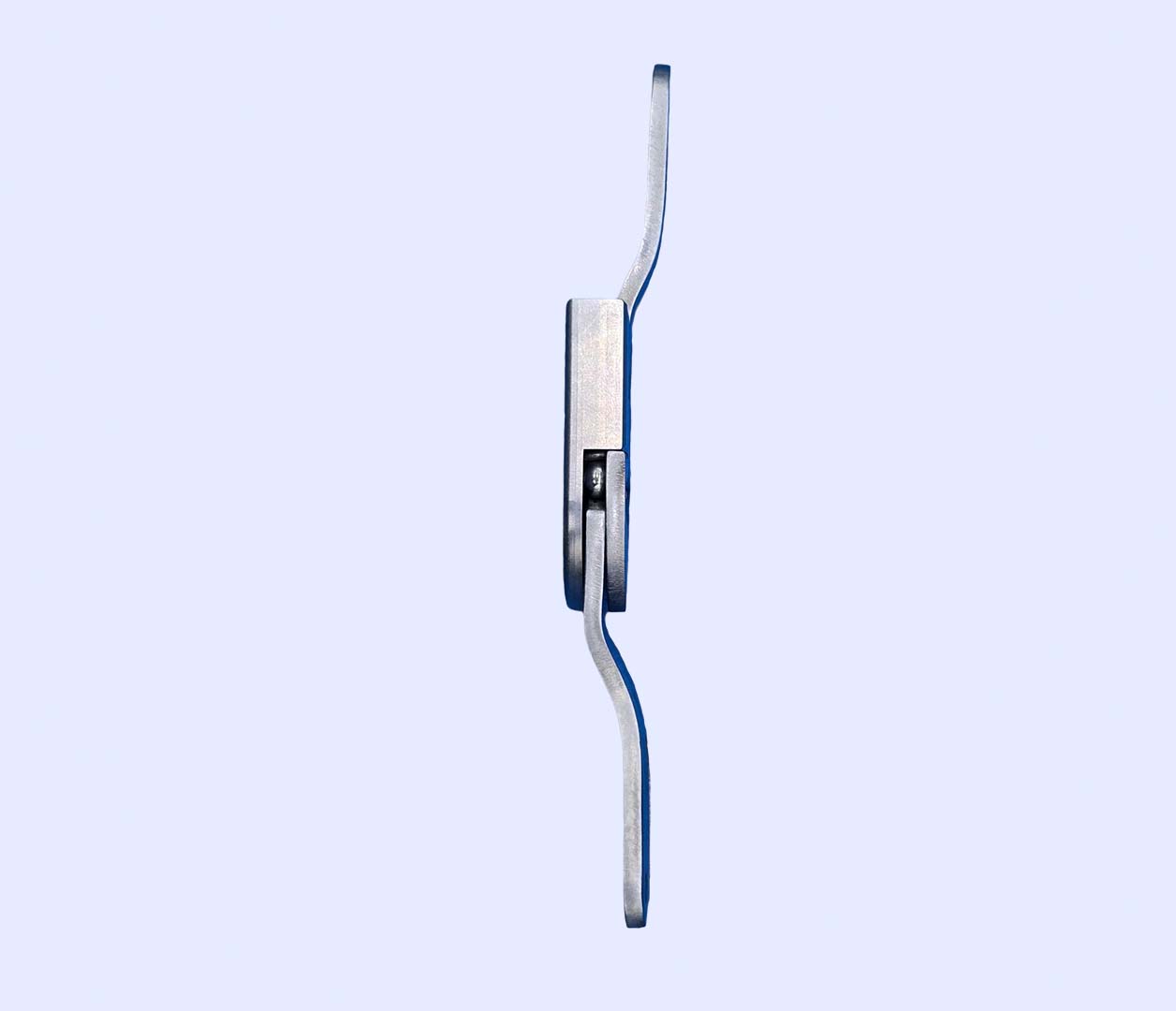

Pre- Contoured Uprights
Screw & Bushing Midsection Design
Why the Vertex Double Action?
- True Thermoplastic Double Action Ankle Joint
- Allows Precise Degree Fine Tuning with Spring Assist/Resist
- Sleek Low Profile Design
- Infinite Degree Setting within 60° Dorsi/Plantar Range
- Ability to lock in any degree of dorsi/plantar flexion
- Pro-Contoured Proximal and Distal Uprights
- Recessed, Countersunk Bushing and Screw Midsection sets flush on medial and lateral surface, providing a slim line
non-protrusion surface - Threaded Attachment Holes
- Provides Superior Medial and Lateral Control

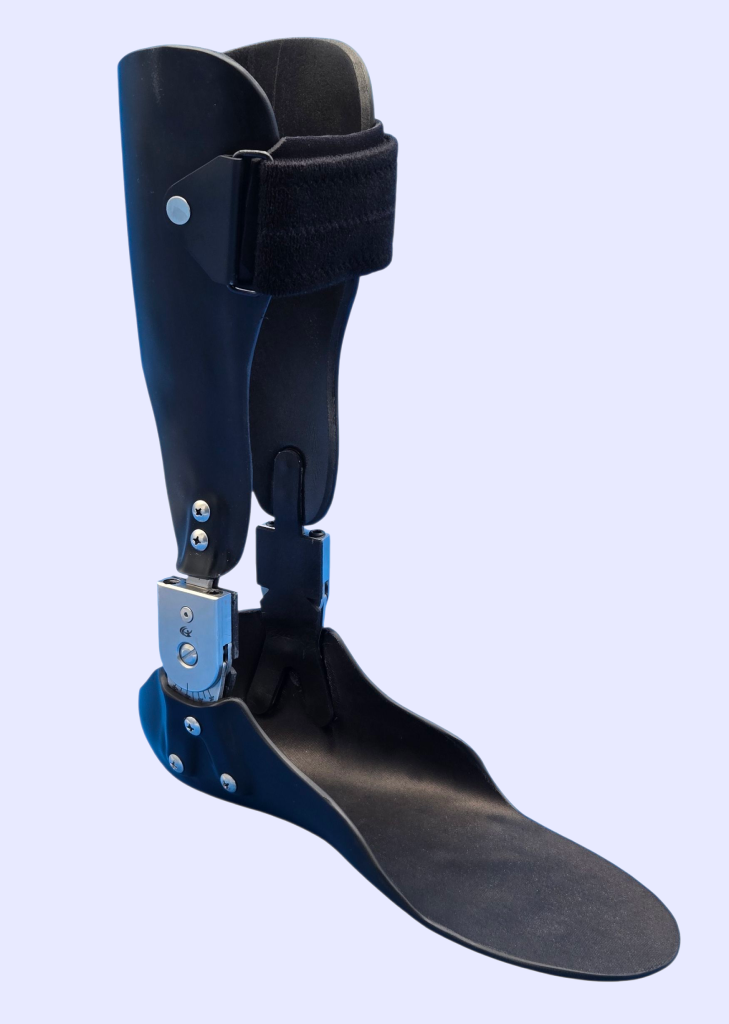

- Provides Superior Torsional Stability/Control of AFO
- Fully Machined Durable Stainless Steel Construction
- Light Weight
- Ease of Fabrication
- Affordable, Adjustable, Convenient
- Extremely Cost Effective!

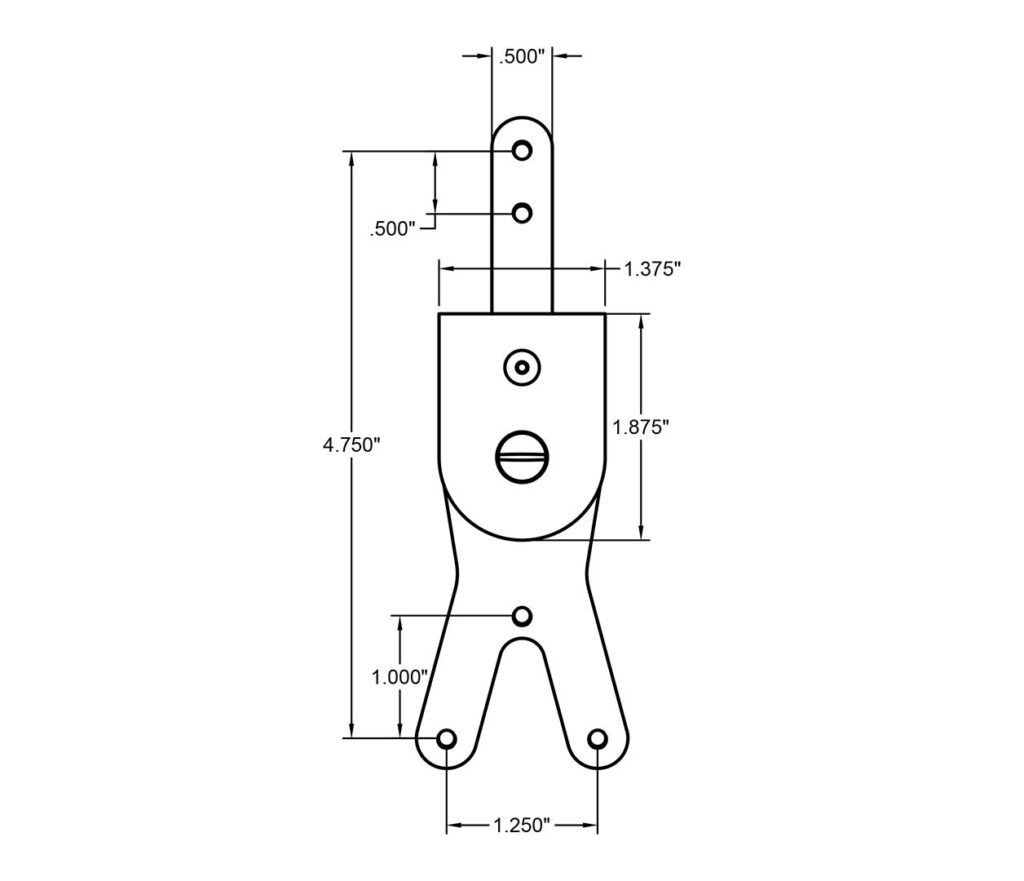

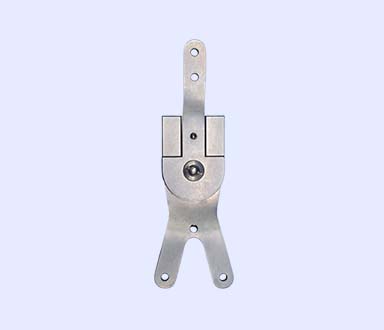

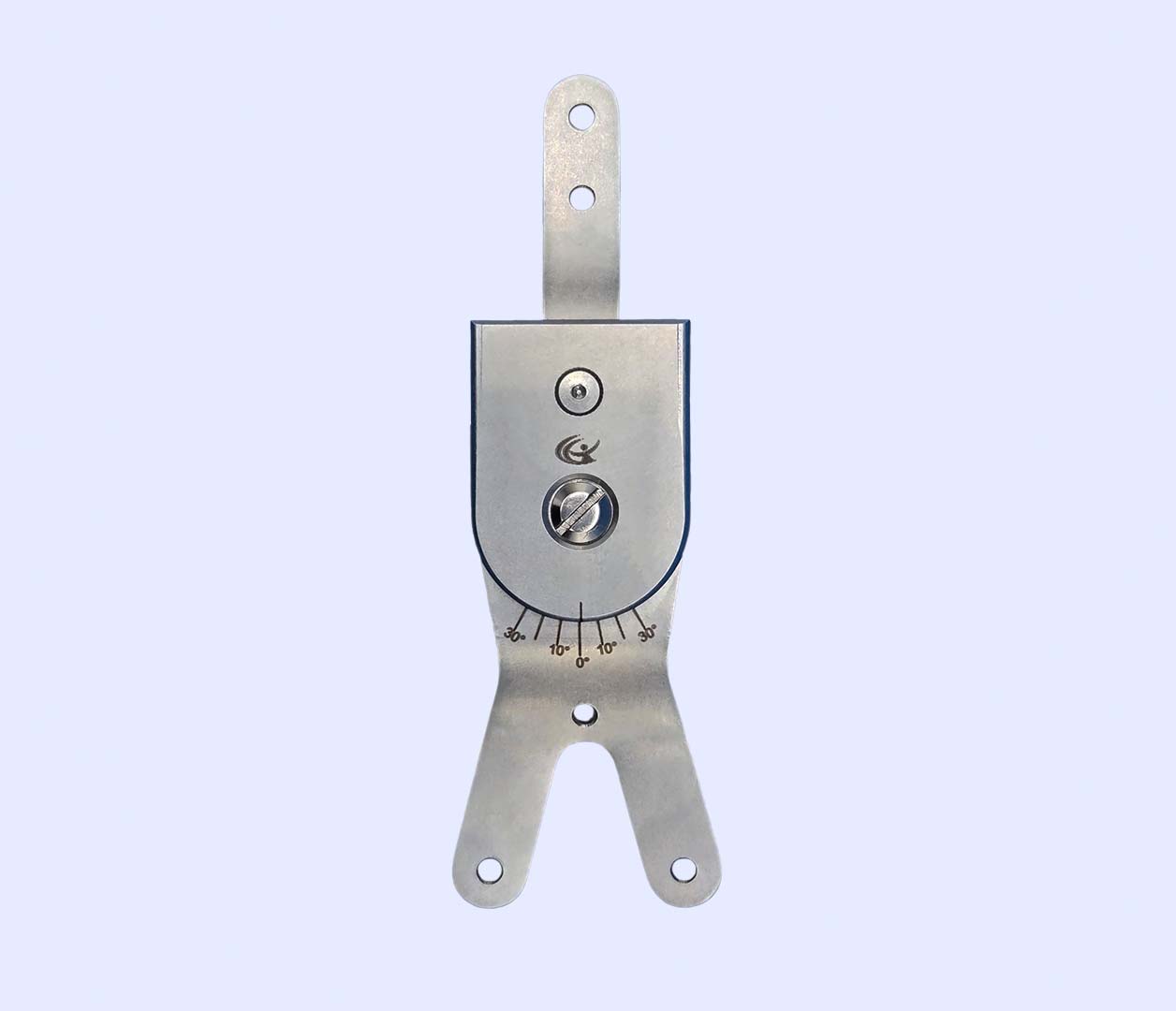

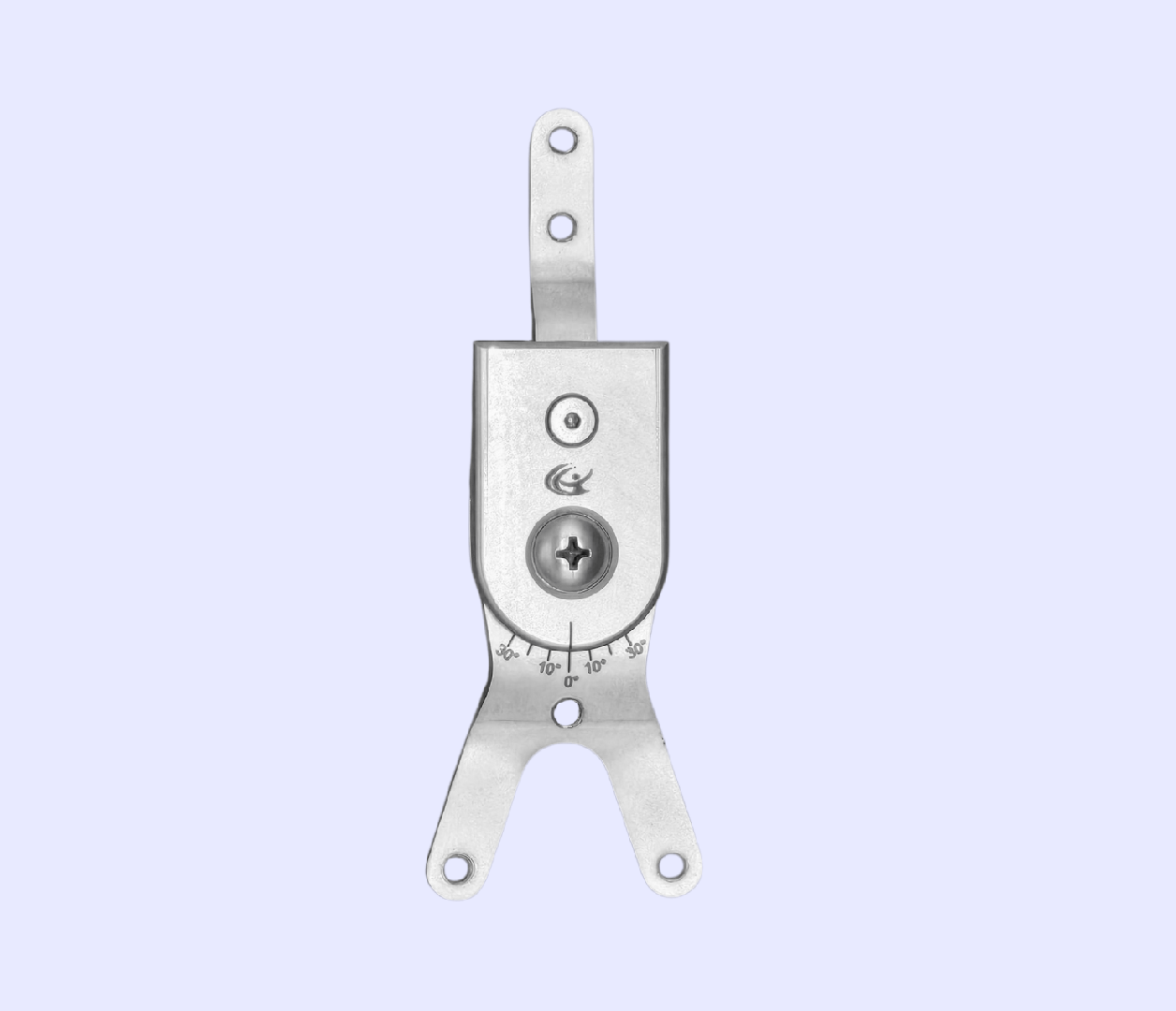

Vertex Double Action Ankle Joint
Product# |
Description |
Size |
Unit |
|---|---|---|---|
|
VX-220A |
Vertex Double Action Ankle Joint |
Adult |
Pair |
*Vertex Double Action Ankle Joint Includes:
1 Pair Vertex Double Action Ankle Joints, Attachment Screws,
1 Pair Ankle Joint Pads

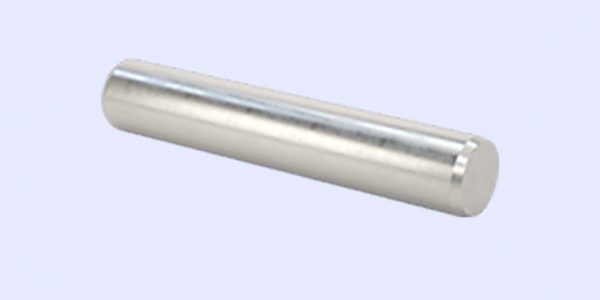

Pin Stop
Product# |
Description |
Size |
Unit |
|---|---|---|---|
|
VX-220A-#4 |
Vertex Double Action Pin Stop |
Adult |
Pair |
*Pin Stops can be utilized in both channels to completely lock out
joint. Pin stops can also be utilized in posterior/anterior channel to
block dorsi or plantar flexion

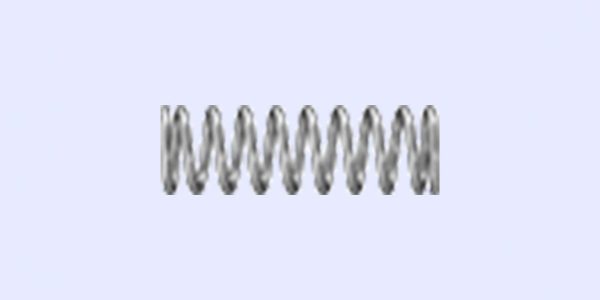

Dorsi-Only Spring and Pin Kit
Product# |
Description |
Size |
Unit |
|---|---|---|---|
|
VX-220A-DAS |
Vertex Dorsi-Only Spring Kit |
Adult |
Pair |
*The Dorsi-Only spring kit provides a longer spring and pin if
dorsi-assist only is desired. The longer spring increases the dorsi
angle and provides increased dorsi-assist.

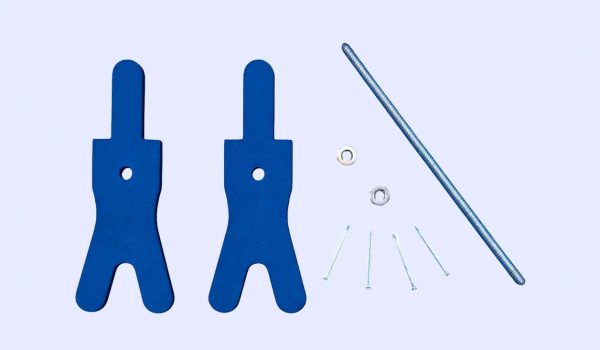

Fabrication Kit
Product# |
Description |
Size |
Unit |
|---|---|---|---|
|
VX-220A-KIT |
Vertex Double Action Fab. Kit |
Adult |
Kit |
*Vertex Fabrication Kit Includes:
1 Pair Vertex Spacer Pads, Threaded Rod,
Hex Nuts, Fabricating Nails
